10 point Capacitive Touch panel Screen 12 Inch LCD Monitor embedded for industrial machine

FOB Reference Price:Get Latest Price
US $79-95 / Pieces | 100 Piece/Pieces sample order are welcomed (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
10''
Type:
Capacitive
Interface Type:
D-Sub, DVI, Serial, USB, AV TV are optional
Resolution:
800 x 600
Brand Name:
OEM OR ODM
Model Number:
1201M
Place of Origin:
Guangdong, China (Mainland)
screen size:
12 inch 4:3 square screen
installation:
Embedded, wall-mounted, ceiling-mounted, desktop stand mode
case:
metal case ,plastic case ,open frame optional
inputs:
vga dvi tv AV USB.... inputs optional
Setup (optional):
wall mounted ,desktop table stand
touch type:
IR touch ,capacitive touch , resistance touch ,SAW touch
touch point:
one ,two ,four ,ten .. multi point touch for choice
warranty:
3 years warranty ,can provide the spare part for free
factory:
about 300 workers ,welcome to visit
keywords:
10 point Capacitive Touch Screen 12 Inch LCD Monitor embedded
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month 10 point Capacitive Touch panel Screen 12 Inch LCD Monitor
Packaging & Delivery
Packaging Details
300*245*44mm
340*140*300mm
6pcs in a carton,carton size:650*450*410mm
10 point Capacitive Touch panel Screen 12 Inch LCD Monitor embedded for industrial machine
Port
Shenzhen china
Lead Time :
Shipped in 3 days after payment
Product Description

New Open Frame Capacitive Touch Screen 7/ 10/ 10.1/ 15/ 17 Inch LCD Monitor 12V

Resistive,IR or capacitive touch is available

Black or White housing per your request

1280*1024 Standard High Resolution

DVI,TV ,AV,Speaker,VGA,etc is optional

OEM brand is welcome

Plastic Case or Metal case or open frame

USB or RS232 for touch screen

4 wire resistive touch or 5 wire resistive touch option

Technical Specificaiton
Panel size12 inch TFT-LCD Touch Screen Monitor
Display area245*285mm
Standard Resolution800*600(1024x768 supported )
Number of Colors16.2M
Brightness300cd/m2
Response time5ms
View angleHorizontal:160°
Vertical:130°
Contrase ratio450:01:00
Video input format(analog) RGB
ConnectorVGA for video signal
USB (or RS232) for touch
DVI,AV,TV are optional
Frequency30~80KHz/60~75Hz
Power supplyExternal Power Supply:100 to 240V  (DC 12V)
Operation EnvironmentWorkable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model4-wire resistive touch
Optional(5-wire resistive touch,Capacitive ,SAW,Infrared touch optional)
Duration50000hours
touch validity>1,000,000
Net weight3.0 Kgs/pcs,include stable mental base
Gross weight4.5 Kgs/pcs,include stable mental base
Power consumptionMax 30W
Setup (optional)1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD  controlAUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interfaceUSB or RS232 optional
Touch response time2ms
CertificateCE, ROHS,FCC
Warranty3 years warranty,can provide spare parts
Monitor size(not include base)300*245*44mm
Each unit box size340*140*300mm
Package size6pcs in a carton,carton size:650*450*410mm

Picture shows

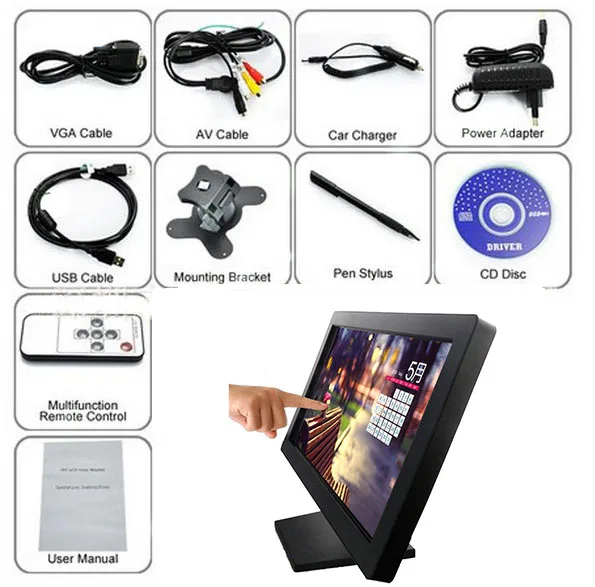

Accessories

1x VGA Cable
1x USB Cable
1x Power Adapter
1x Power Cable

1x touch pen
1x Manual

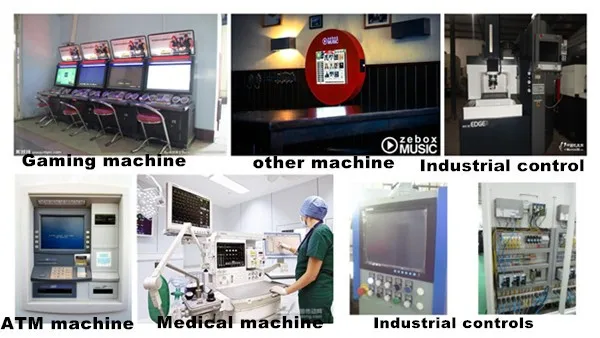

Application:

Packing :

6pcs in a carton,carton size:650*450*410mm
